Rental Video wall installation Step 1: Install the structure
1. Place the LED cabinet on a horizontal surface and connect them with the quick locks on both sides. Someone must hold the LED cabinet during installation to prevent it from falling.

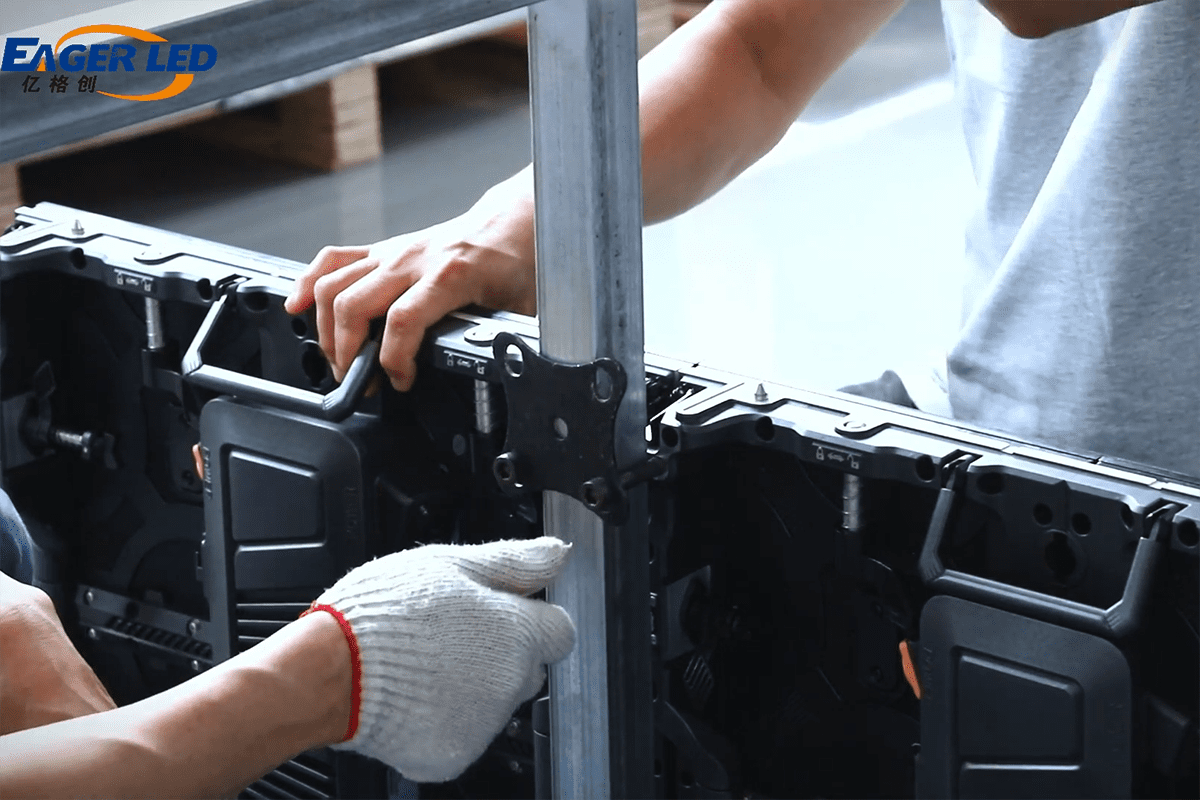

2. Install the LED cabinet on the bracket, align the two holes under the connecting iron sheet with the holes of the LED cabinet, complete the fixation, and repeat the previous steps.

video wall installation - 1

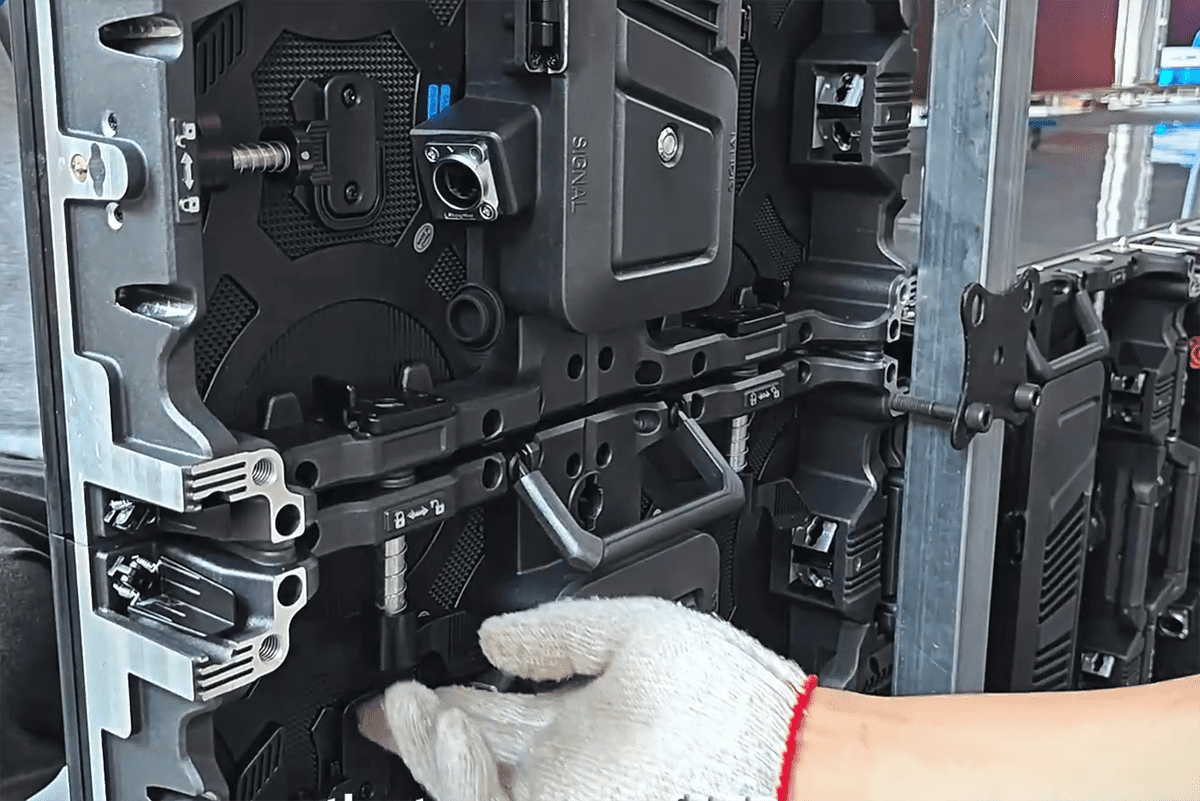

3. Use quick locks to fix the rows

video wall installation - 2

Rental Video wall installation Step 2: Connect various wires
1. Connect the power cord and signal cable Insert the signal cable into the interface at the bottom of the LED cabinet, and each row needs to be plugged in order.

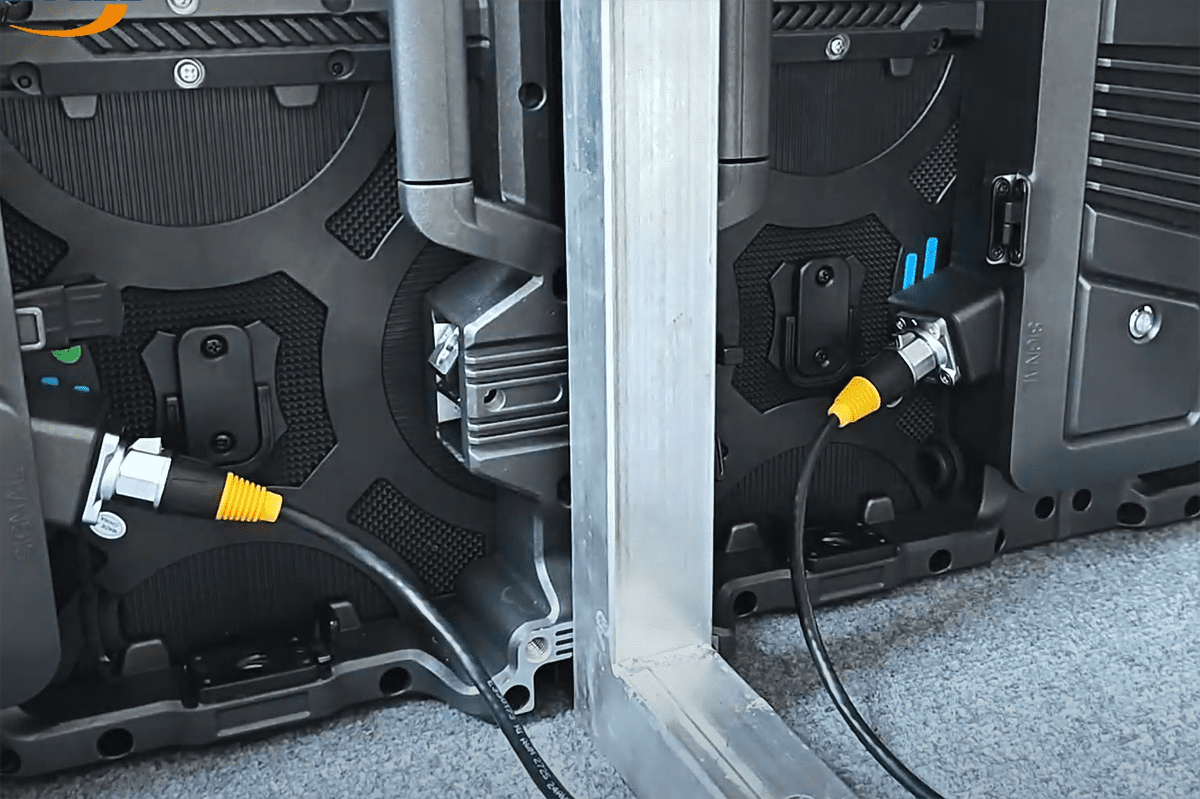

2. After plugging in the power cord, align the yellow plug with the yellow interface and the black plug with the black interface. Connect in order.

video wall installation - 3

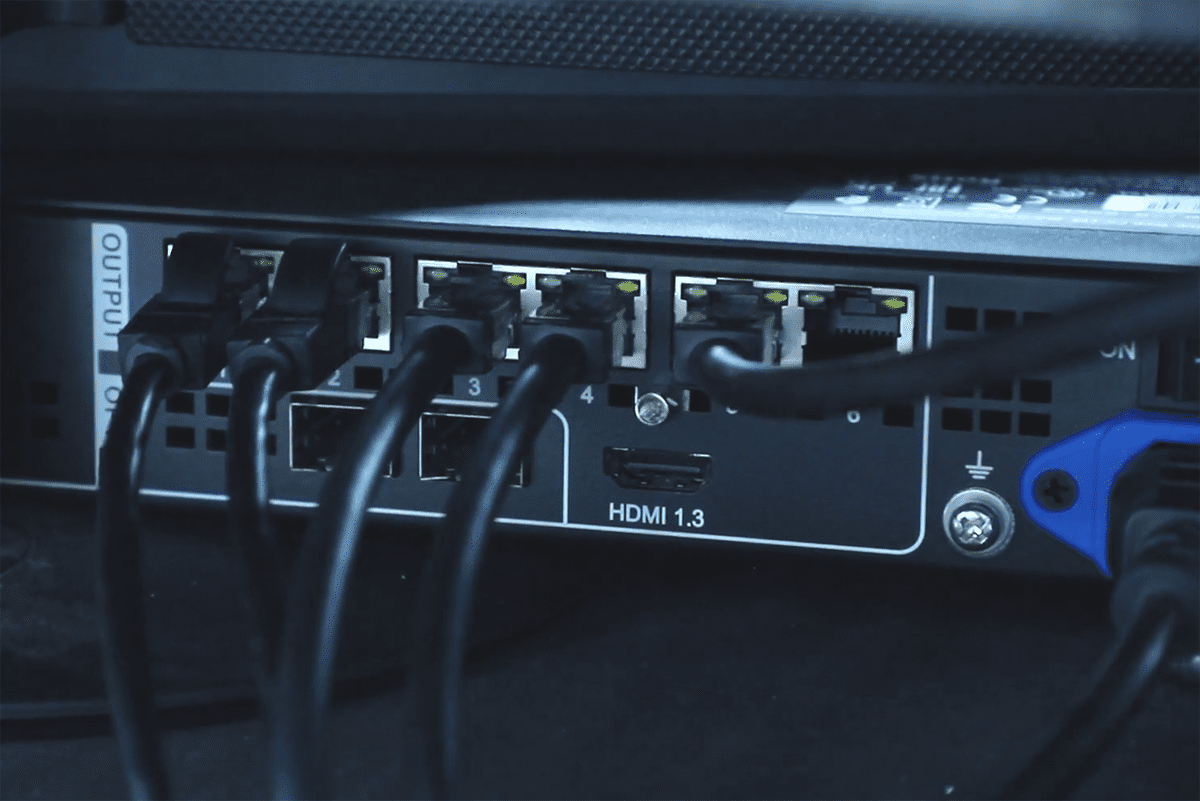

3. Connect the signal cable between the LED display processor and the cabinet. Prepare 5 signal cables, and insert one end of the main signal cable into the network port on the left side of the cabinet. One row of LED cabinets corresponds to one interface. The other end of the main signal cable is connected to the LED processor, and the 5 cables are plugged in in order.

video wall installation - 4

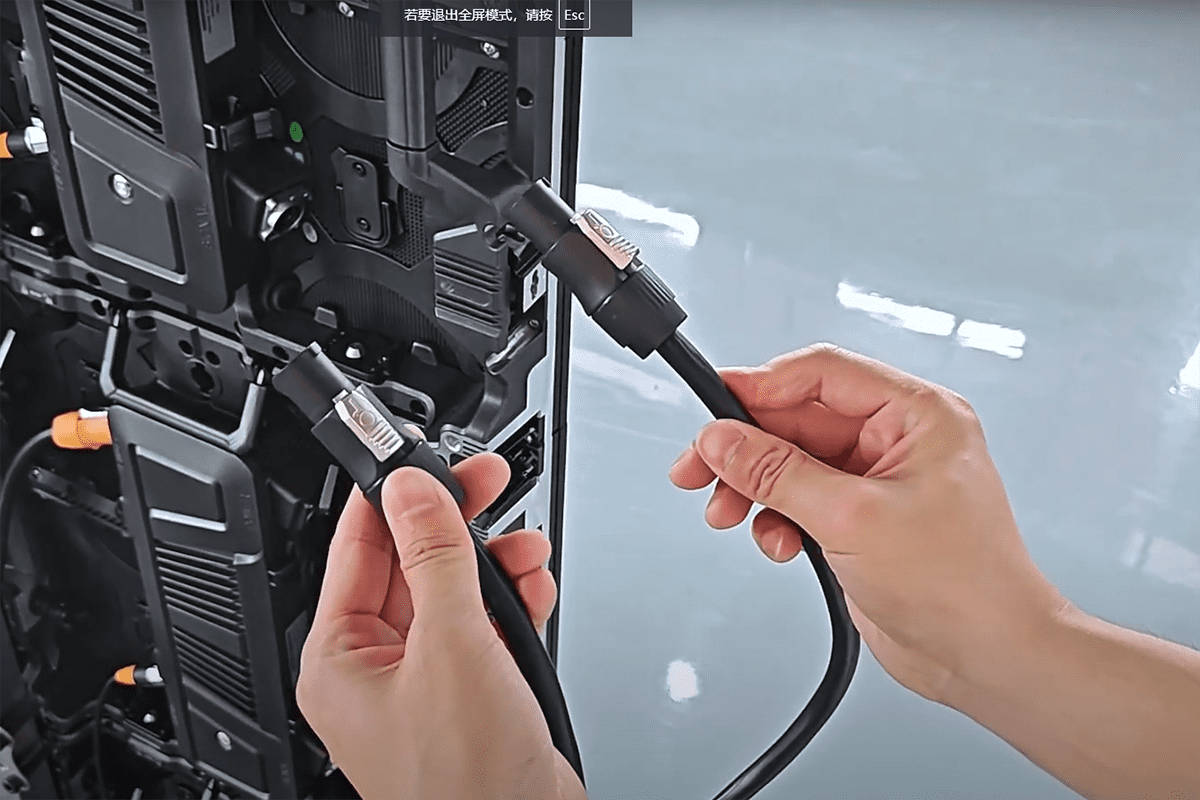

4. Connect the power cord with black plugs at both ends to the side of the box. Then connect the external power cord to the power interface on the left side of the box.

video wall installation - 5

Rental Video wall installation Step 3: Configure parameters
Configure LED screen Insert the USB flash drive, open “NovaLCT”, the default login password is 123456, click to send parameters (prepared configuration file) to the receiving card, after it is displayed as successful, click Save, and the configuration is complete.

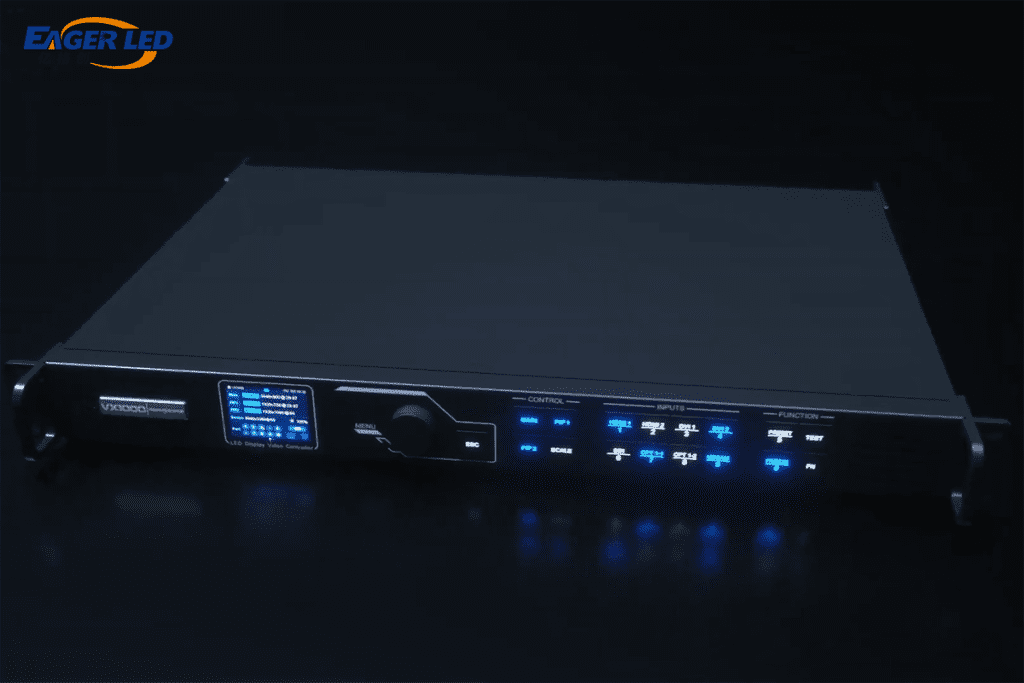

Novastar VX1000 LED Screen Controller
