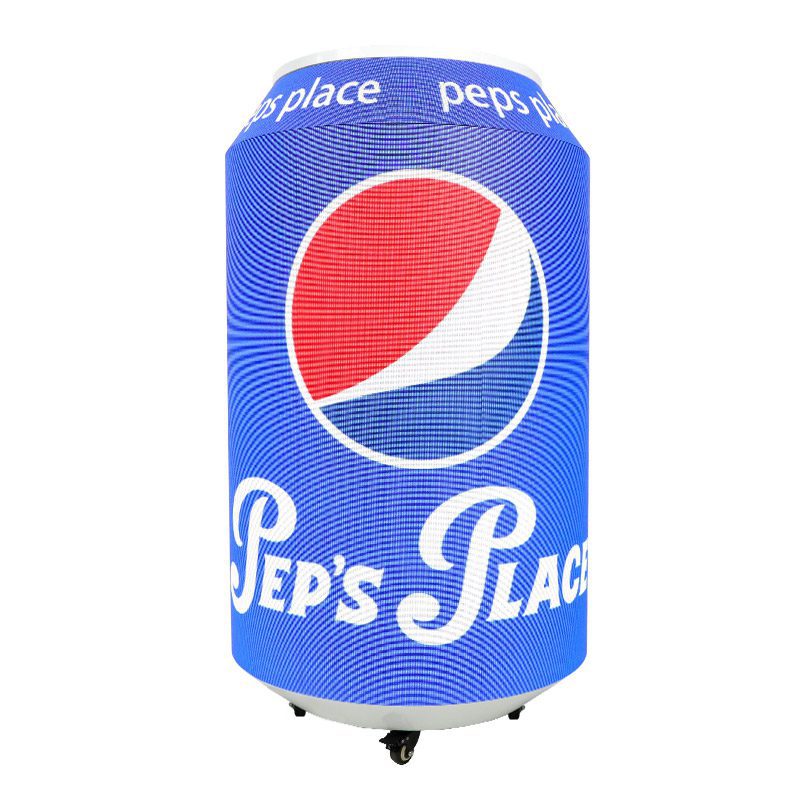

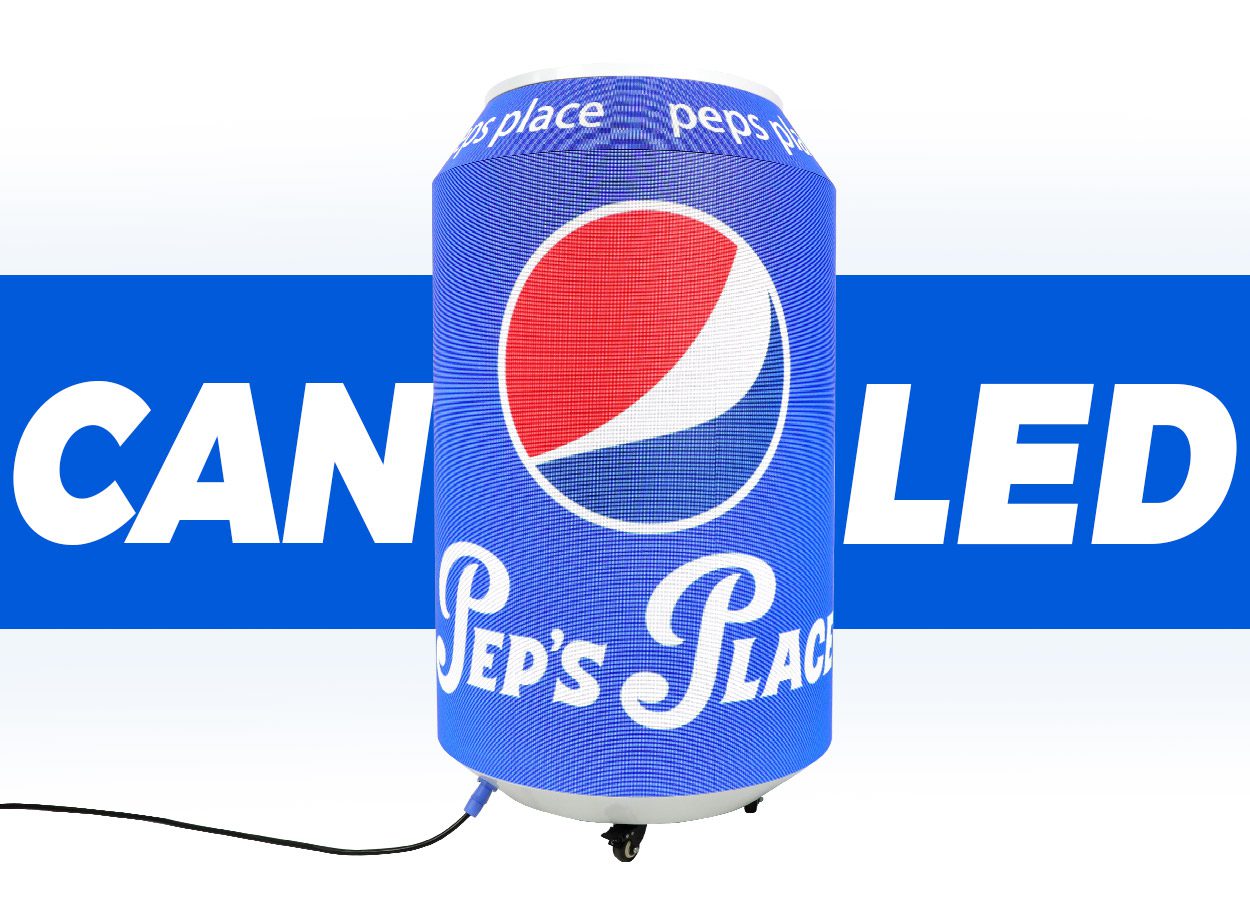

EA-DCan Indoor Can-Shaped LED Display
Choose the EA-DCan can-shaped LED display when the physical shape is part of your campaign. It is an indoor advertising unit rather than a general-purpose outdoor billboard or a building-scale column installation. Confirm the display configuration and content layout for your audience and venue.
- Listed pixel pitches: P1.875 and P2, using flexible LED modules.
- Indoor configuration with listed 650 cd/m² brightness and front module access.
- Can-shaped cabinet on a three-wheel base; plan the floor route, cable entry and safe parking position.
On this page
P1.875 or P2: what should the buyer compare?
| Listed configuration | Pixel density | Planning implication |
|---|---|---|
| P1.875 | 284,444 pixels/m² | Finer pixel spacing than P2; review close-viewed text and graphics at the actual audience distance. |
| P2 | 250,000 pixels/m² | Compare the intended content, complete pixel canvas and equipment scope with the P1.875 option. |
Pixel pitch alone does not define the final image canvas or quote. Request the cabinet dimensions, active display dimensions and pixel map for the selected version, together with the current controller configuration.
How should campaign content be prepared?
Use the confirmed pixel map to place logos, product graphics and short messages on the cylindrical surface. Review where viewers approach the display and avoid putting key text across a content seam. Ask for a content-layout check using your actual artwork before production.
What is needed for an equipment quotation?
Send the quantity, preferred pitch, indoor site photos, closest viewing distance, campaign artwork, access route, power and signal requirements, destination and target date. Ask for a complete scope covering the display, controller, cables, spare modules and transport packing.
Request an EA-DCan display quote

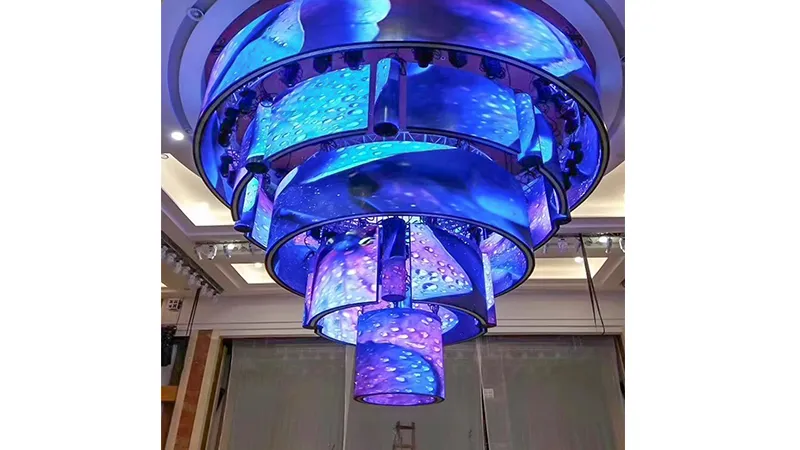

For an architectural curved wall or column with a different geometry, review the flexible LED screen planning page and provide project drawings.

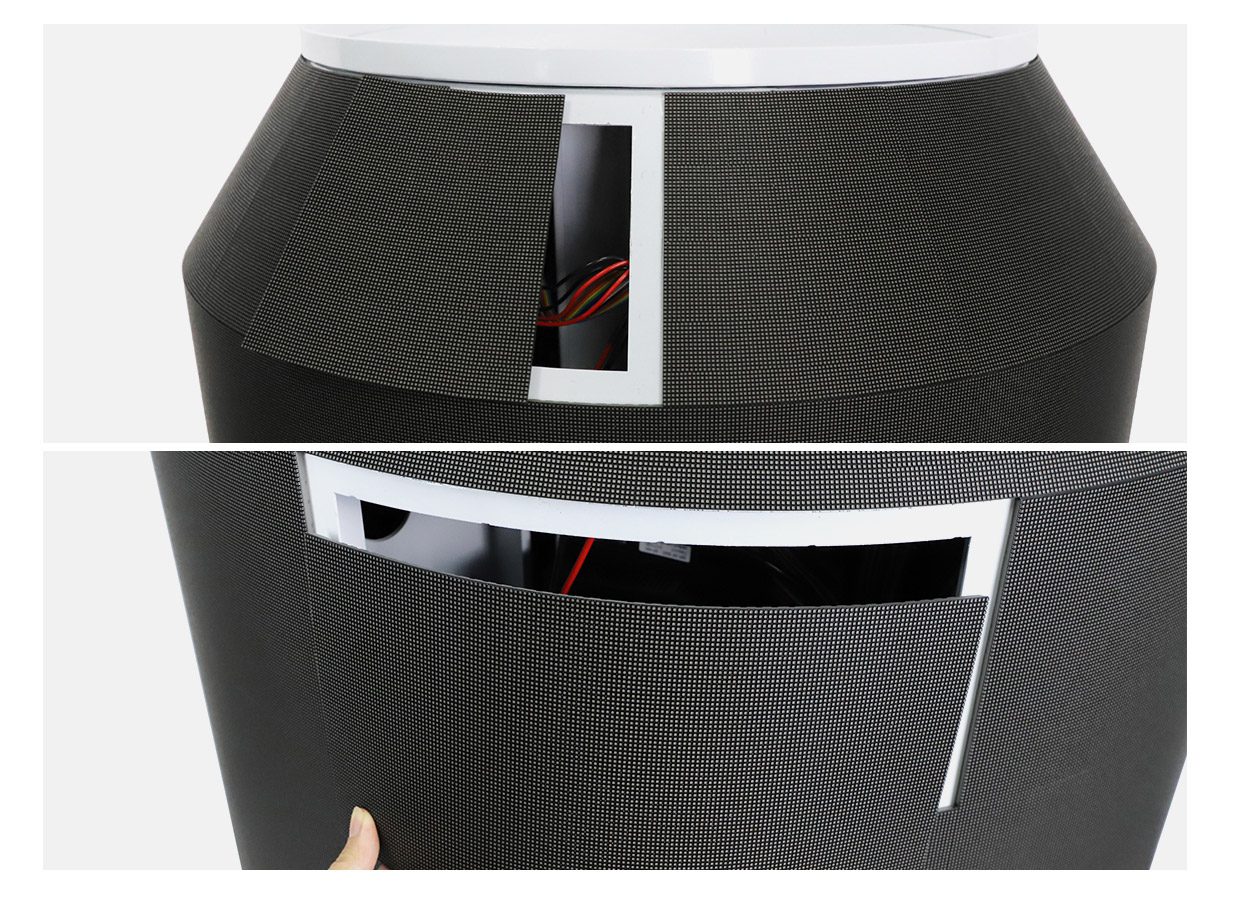

Flexible Modules for a Cylindrical Display
Flexible LED modules form the cabinet’s curved display surface without breaking the can-shaped profile. The P1.875 and P2 configurations provide pixel densities of 284,444 and 250,000 pixels/m², respectively.

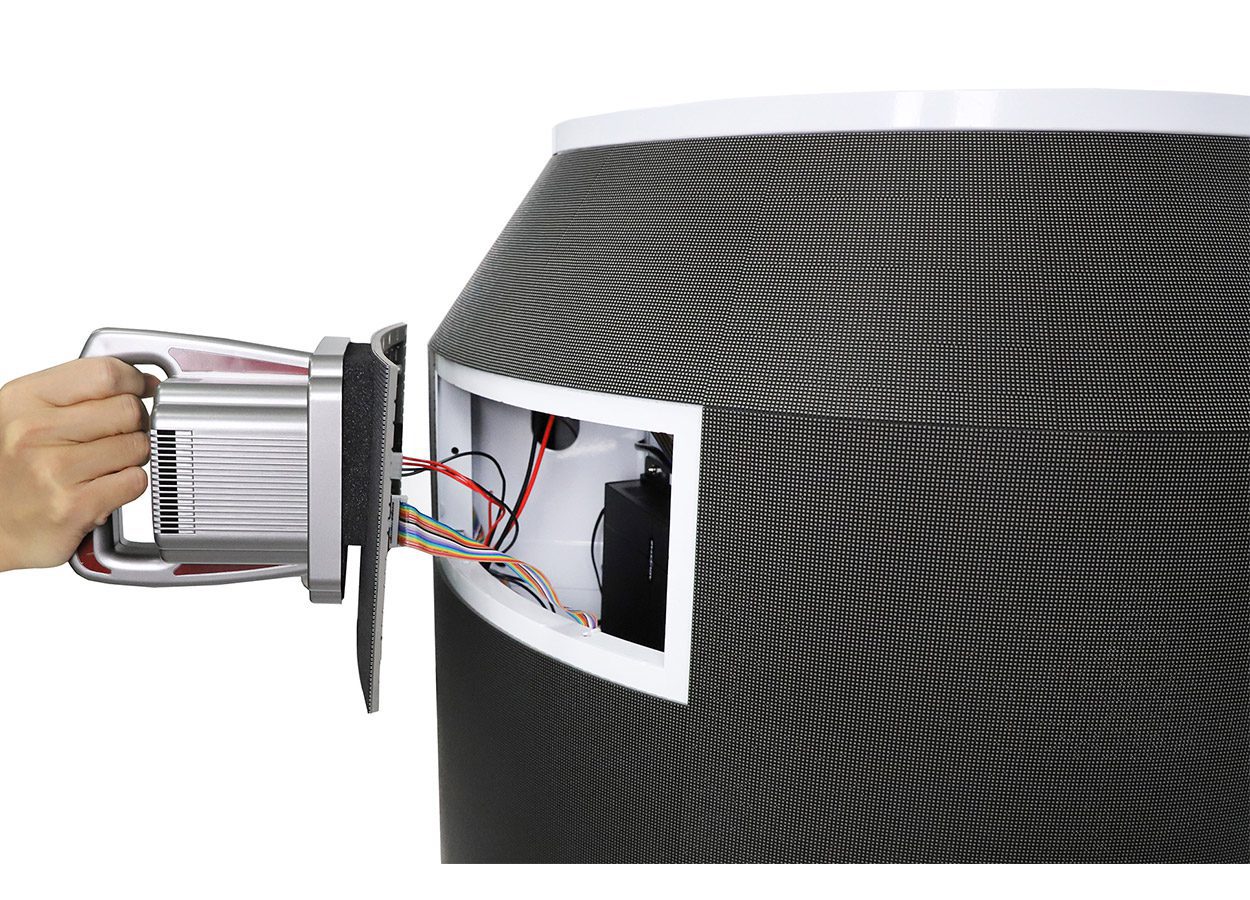

Front-Service LED Module Access
Modules can be accessed from the front, so routine service does not require moving or dismantling the cabinet. This is useful in retail and event locations where rear maintenance clearance is limited.

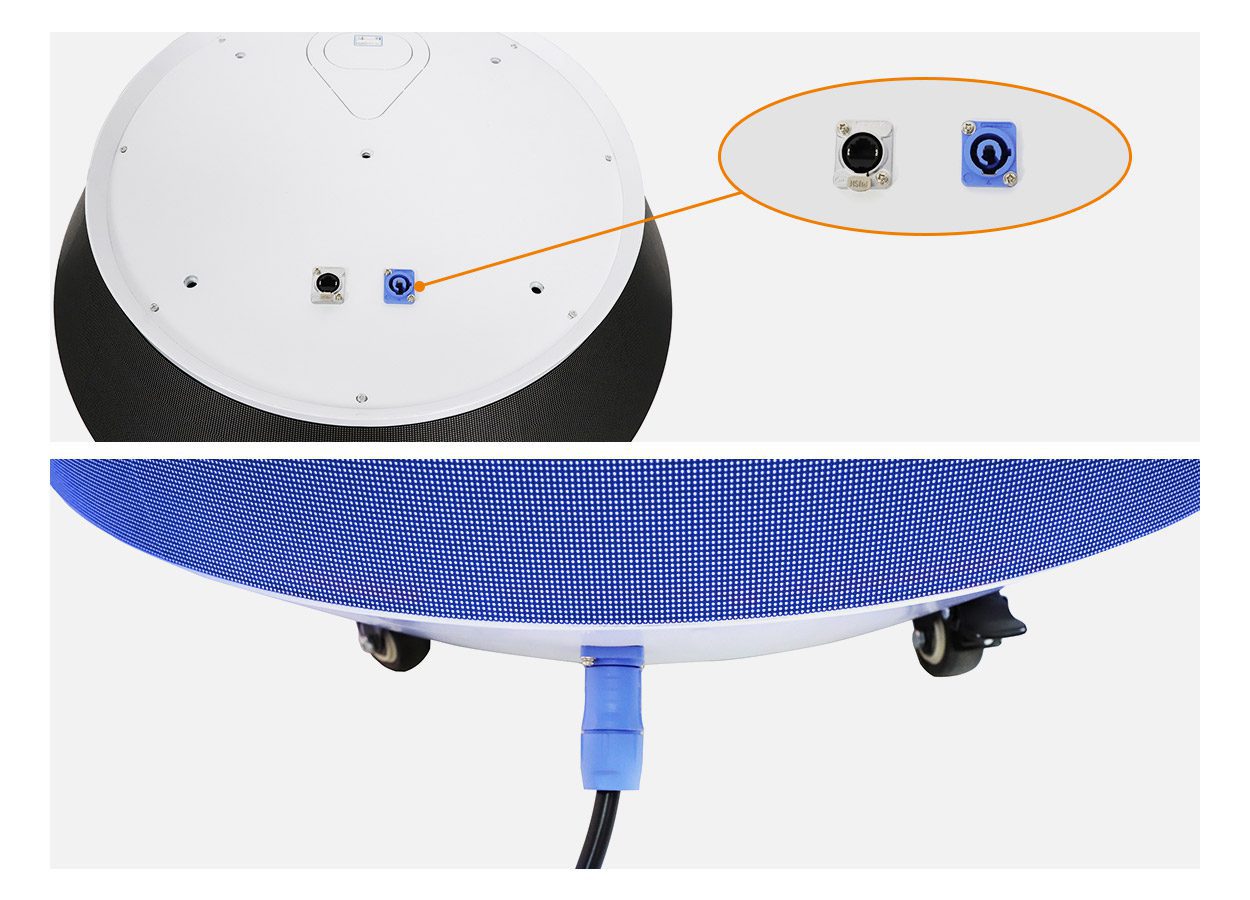

Power and Signal Connections
The top panel provides signal and power connections, while an additional power interface is positioned at the bottom. Installers can select the cable entry that best fits the site layout.

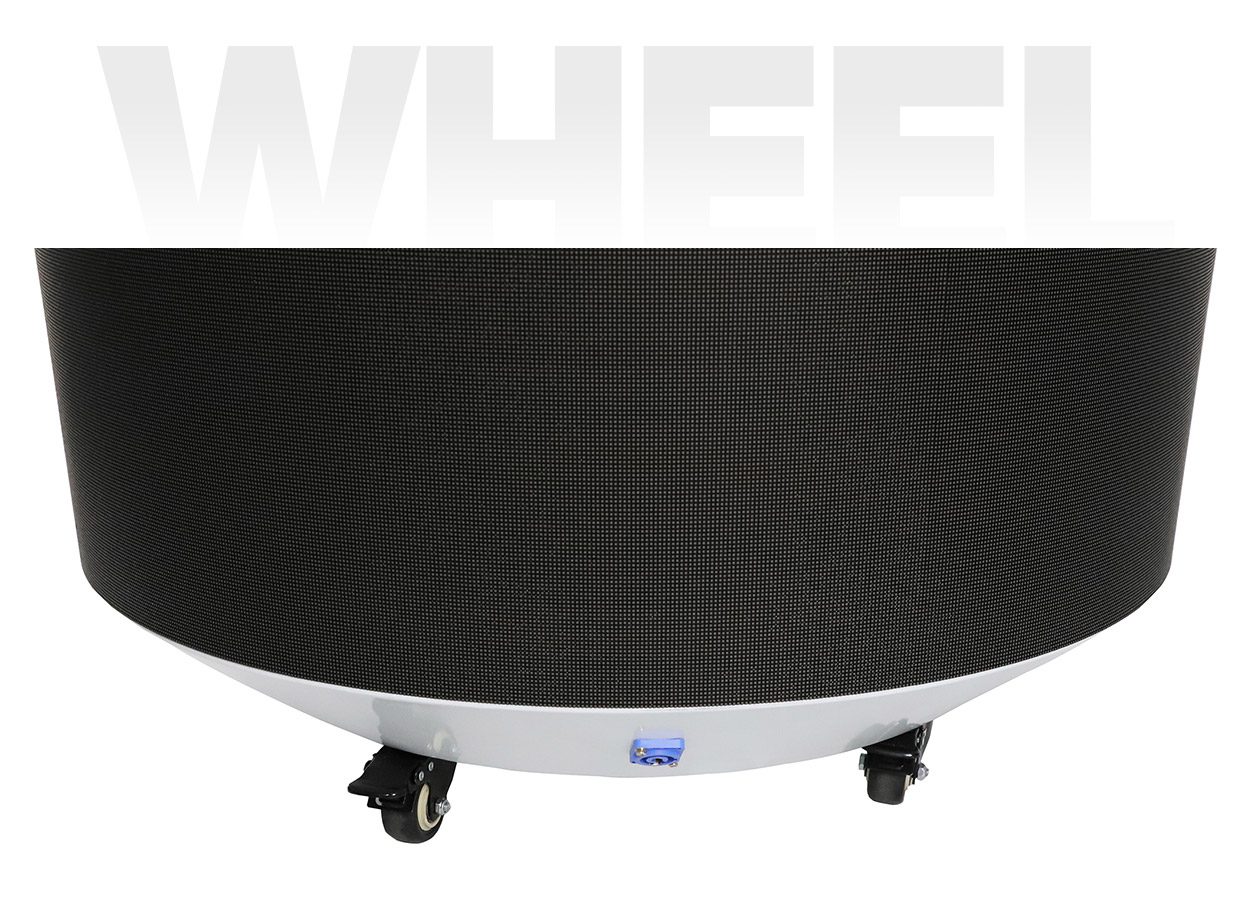

Mobile Three-Wheel Base
Three wheels at the base allow the assembled display to be repositioned indoors without disassembly. The mobile design supports temporary promotions and venues that frequently change display layouts.

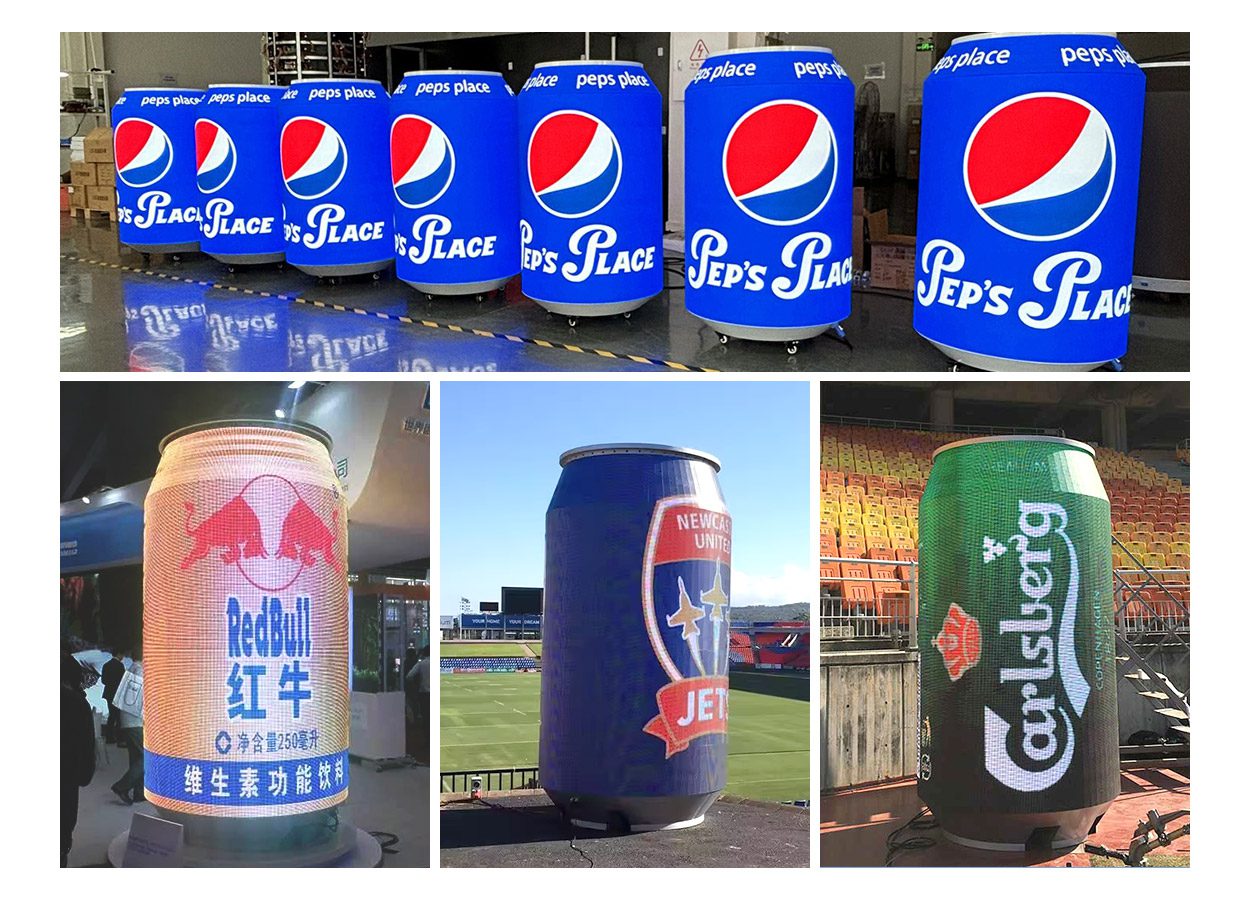

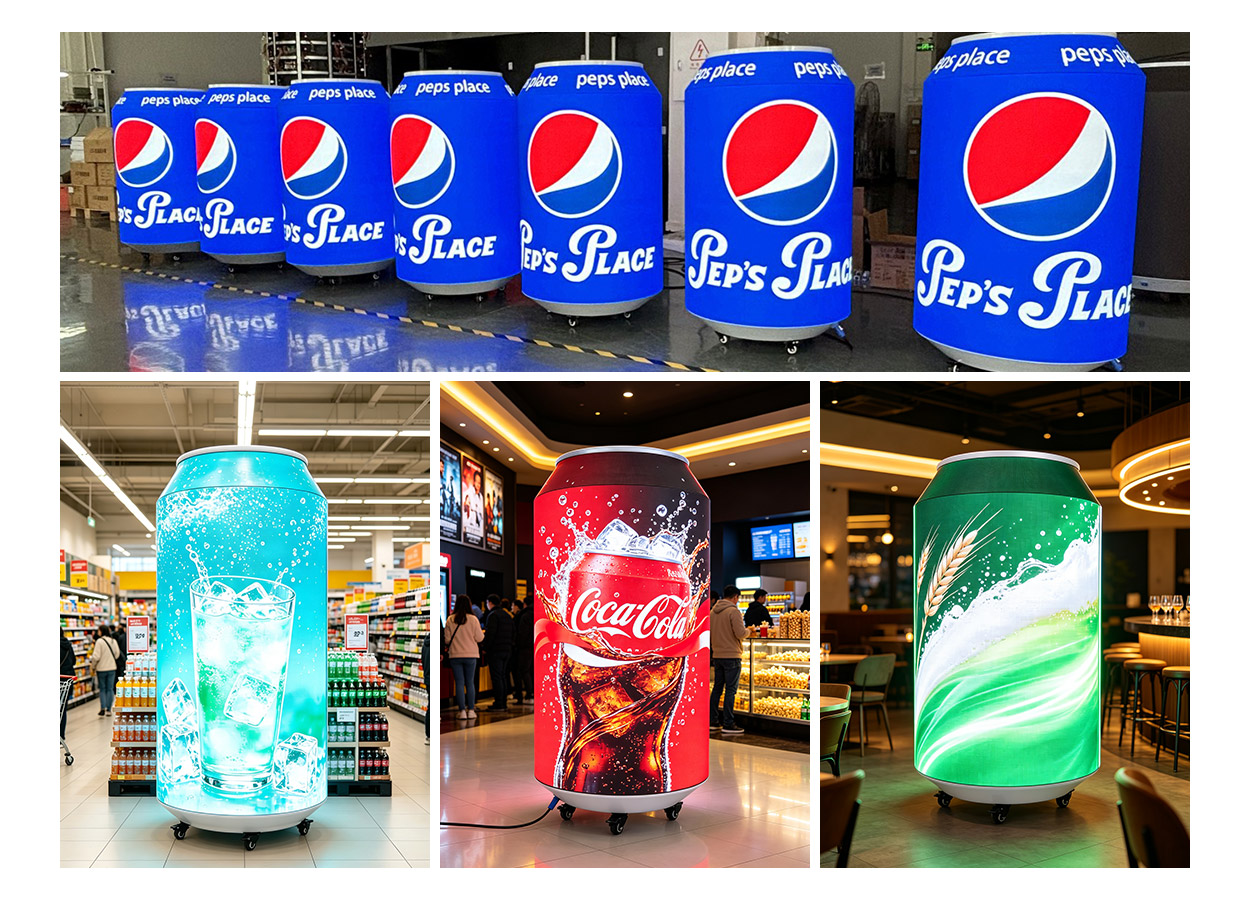

Distinctive Advertising for Beverage Brands
The can-shaped cabinet creates an immediately recognizable format for beverage launches, retail campaigns and event promotions. Content remains visible across a 140° viewing angle, while the 650 cd/m² brightness is specified for indoor environments.
EA-DCan Can-Shaped LED Display Specifications
EA-DCan Can-Shaped LED Display FAQ
What is the EA-DCan can-shaped LED display?
EA-DCan is a mobile indoor LED advertising display built in the shape of a beverage can. It uses flexible SMD1515 modules, supports P1.875 and P2 pixel pitches, and provides front-service access.
Which pixel pitches are available for EA-DCan?
EA-DCan is available in P1.875 and P2. The corresponding pixel densities are 284,444 pixels/m² and 250,000 pixels/m².
Is EA-DCan designed for indoor use?
Yes. EA-DCan is specified at 650 cd/m² brightness and IP31 protection for indoor installations. Site ventilation, humidity and floor loading should be checked during project planning.
How is the EA-DCan LED display serviced?
The display modules are accessed from the front, so routine module service does not require dismantling or relocating the cabinet. This reduces the rear clearance needed for maintenance.
Can the EA-DCan display be moved after installation?
Yes. Three wheels at the base allow the assembled indoor display to be repositioned without disassembly, making it suitable for temporary campaigns and changing venue layouts.
What cabinet sizes and weights are available?
P1.875 cabinets are 764 mm wide with four height options from 1,341 to 1,847 mm and weigh approximately 85–115 kg. P2 cabinets are 713 mm wide with five height options from 1,270 to 1,910 mm and weigh approximately 75–112 kg.
What visual performance does EA-DCan provide?
Both models are specified at a ≥3,840 Hz refresh rate, 14-bit grayscale, 650 cd/m² brightness and a 140° viewing angle. These values support smooth indoor advertising playback and wide off-axis visibility.
Where is a can-shaped LED display typically used?
Typical applications include beverage launches, supermarket promotions, shopping malls, exhibitions, pop-up events and branded hospitality spaces where a recognizable product-shaped display supports campaign visibility.
