Do you think the visual impact of a single LED poster screen is not impressive enough? Want to create a large display wall that attracts everyone’s attention? Then let’s try splicing multiple LED poster displays into a giant screen! EagerLED will provide you with a detailed explanation on how to splice LED poster screens, from the required tools to the specific steps. No need for complicated skills, just follow our tutorial and you can easily master the secret of splicing LED giant screens!

Preparation of tools and materials


LED poster screen: At least two pieces

Phillips screwdriver: Used for tightening or loosening screws with cross shaped grooves.

Connection board: used to connect and fix LED screen units.

Hexagonal screw:used with the connecting plate to fix the LED screen unit

Hexagonal wrench: used to tighten or loosen hexagonal screws.

EagerLED LED Poster Screen

LED screen splicing steps

1. Remove the protective board:

Use Phillips screwdriver to remove the screws on the top of the LED poster display and the side that needs to be spliced, and then remove the protective plate. The same operation is repeated for other LED display screens. It should be noted that each time the last two screws are removed, the protective plate should be held by hand to prevent it from suddenly falling off.Remove all protective plates at the splicing point of the LED display screen.

2. Splicing LED screens:

Use connecting plates and hex screws to secure the two display screens at the back. Repeat this step until all screens are assembled to the size you want.

3. HDMI cable connection

Starting from the rightmost screen, insert the HDMI cable into the OUT port, and then insert the other end into the IN port on the left screen.



Remove another HDMI cable and repeat the above steps to connect each screen in sequence. After completing all wiring, connect WiFi and power to debug and use.

The above knowledge points cover the entire process of LED poster screen splicing, from tool and material preparation to screen splicing, HDMI cable connection, and WIFI connection and use.

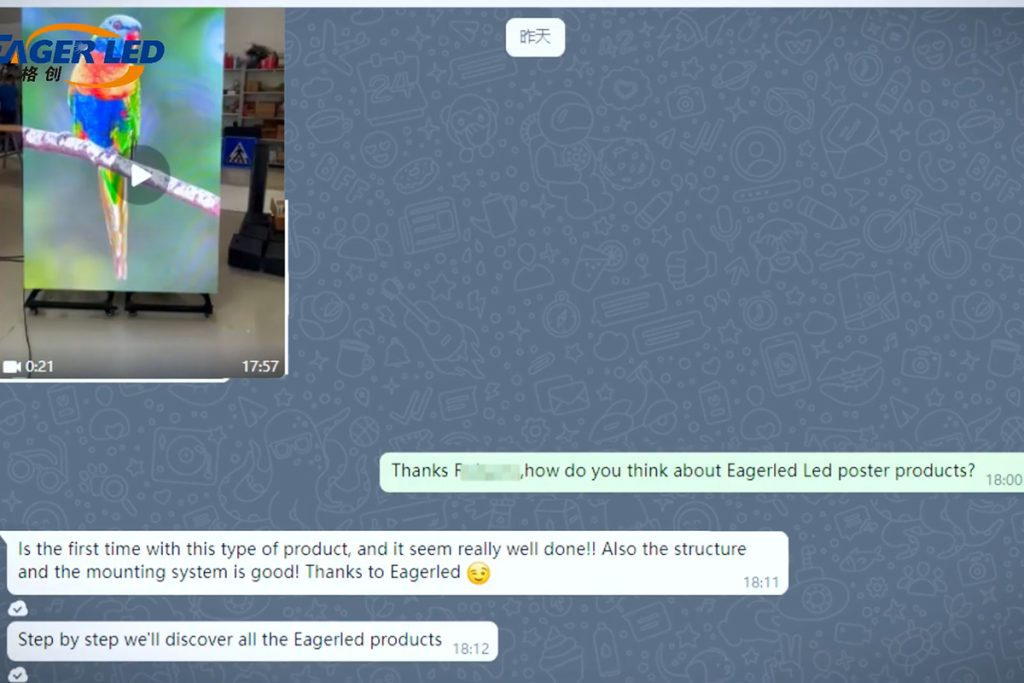

Feedback From Italy ClientsFeedback From Italy Clients On EA1920MP LED Poster Display

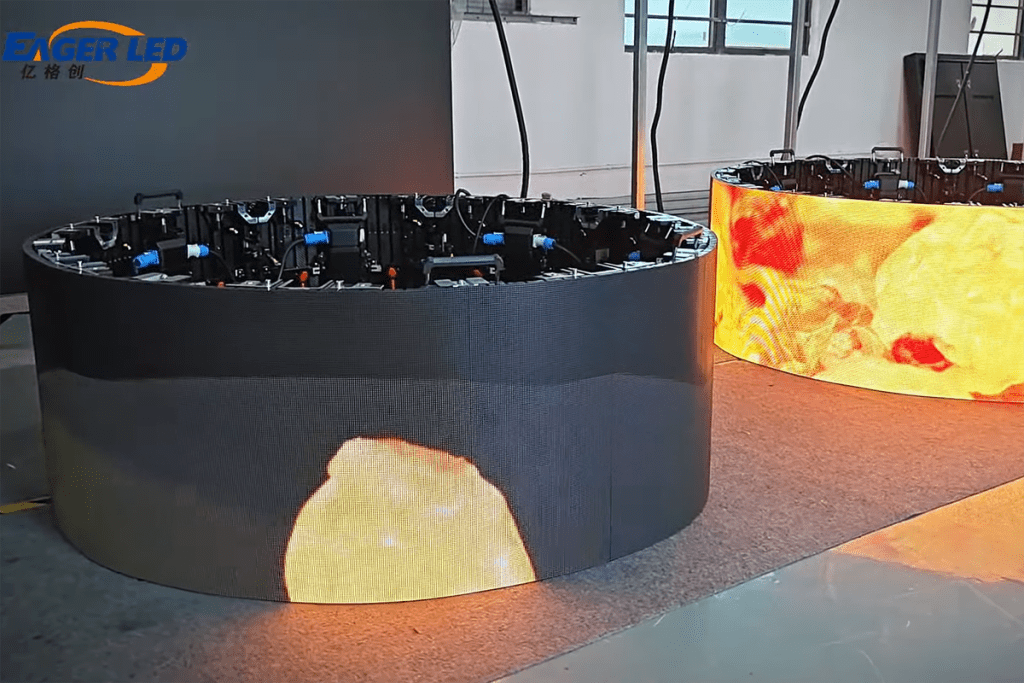

EA500H7 Curved LED DisplayEA500H7 Curved LED Display Explanation Video
