Rental LED displays have become a very popular product in the LED display market due to their convenient installation and disassembly methods. but, how to Install rental LED display? Taking the EA500H6 rental LED screen as an example and combining it with a video, EagerLED will provide you with a detailed introduction. After watching, you can easily install the product.

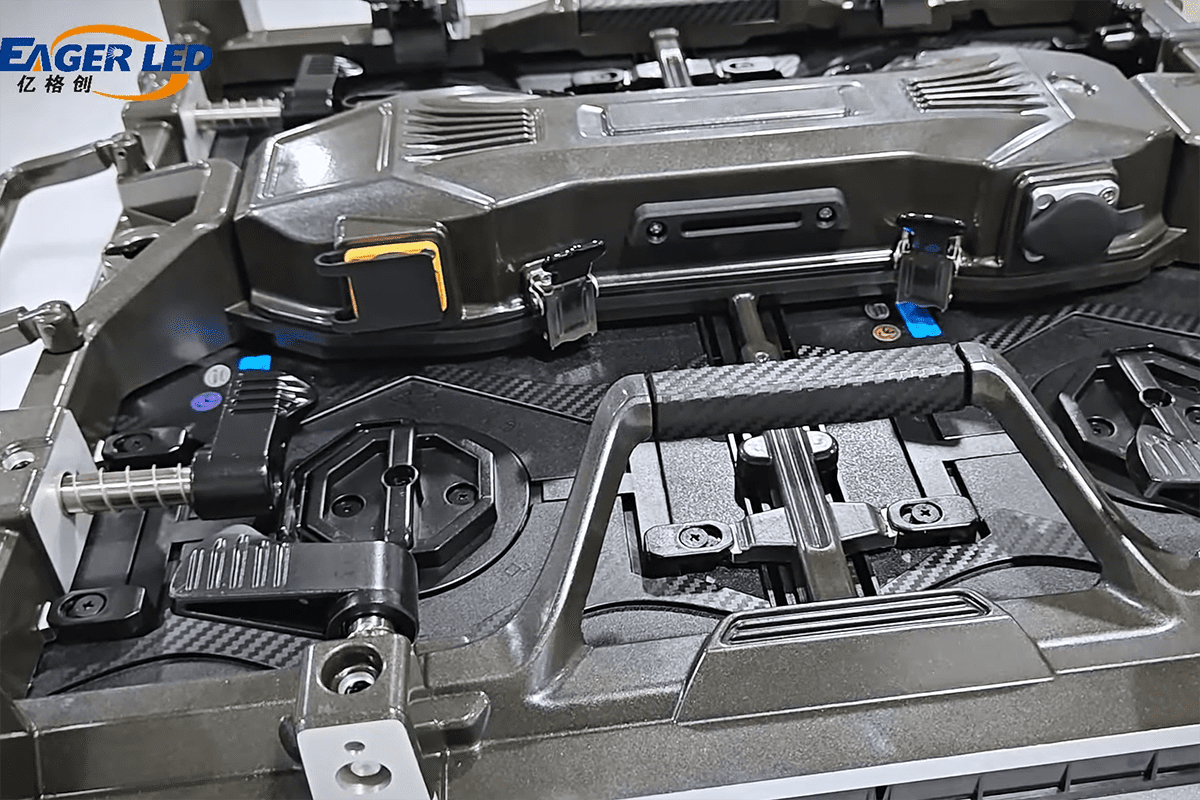

EA500H6 rental LED display screen

One of the advantages of EA500H6 rental LED display is the use of a hub connection method, which is a wireless LED structure that only requires aligning the interface for plugging and unplugging. So, first we need to install the integrated power box.

1. Assemble the integrated power box:
Refer to the video to install the following components:
Test key: a switch or button used to test whether the power box is working properly.
Signal socket: used to receive signals from control cards.
Power socket: used to connect power cords and provide power to the power box.
Connect signal line: Lead the signal line out of the signal socket and connect it to the subsequent receiving card.
Receiver card: Fix the receiver card inside the power box.

EA500H6 rental LED display screen

2. Assembling frameworks and modules:
Fix tLED module slots on the cabinet frame according to the predetermined positions.
Install the rotating handle on the back of the single module, and then install the module onto the frame. By rotating the handle, maintenance personnel can easily remove the module structure of the LED screen from its casing for maintenance from the back.
Finally, install the previously assembled power box (including components such as power supply and receiver card) into the corresponding slots. At this point, a complete LED display screen has been installed.

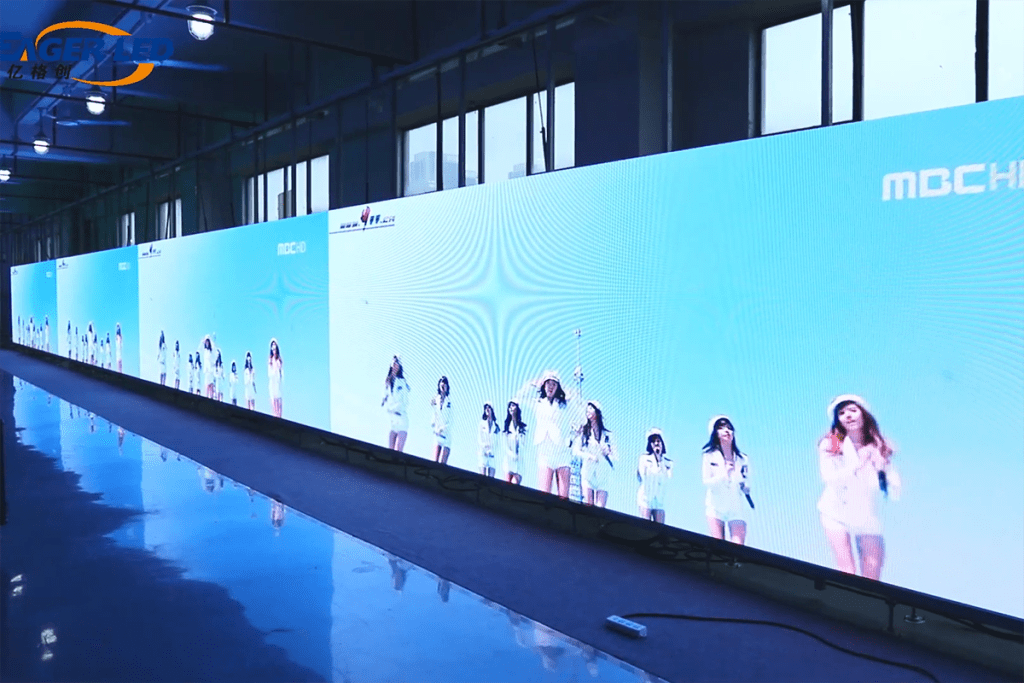

3.72-hour aging test:
After completing all assembly work for the EA500H6 rental LED display, conduct aging testing.
Aging test is a testing method that involves running the display screen for 72 hours and observing its performance stability.
During the testing process, special attention should be paid to the changes in parameters such as brightness, color temperature, and color consistency of the display screen.
